Single Column Cutting Cnc Metal Bandsaw Machine Portable

I'm Online Chat Now

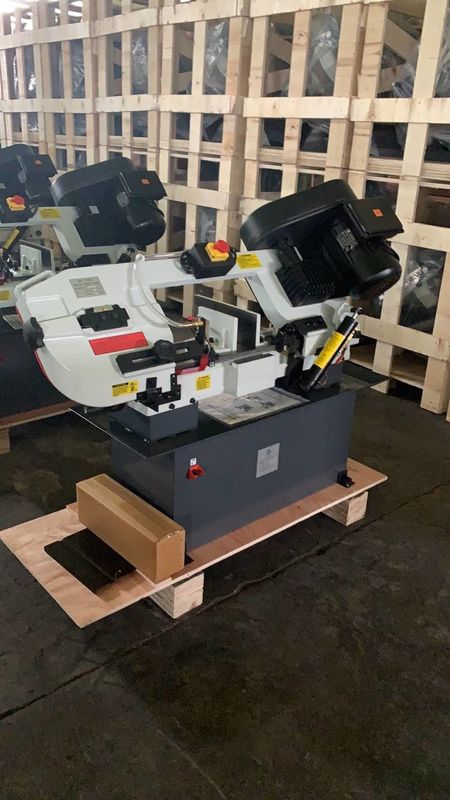

Single Column Cutting Cnc Metal Bandsaw Machine Portable

large.img.alt
small.img.alt

Large Image :  Single Column Cutting Cnc Metal Bandsaw Machine Portable

Product Details:

Place of Origin: CHINA
Brand Name: HEIYAN
Certification: CE/ISO
Model Number: BS-712N

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Price: NEGOTIABLE
Packaging Details: Metal Cutting Semi Automatic Bandsaw Horizontal Band Sawing Machine ON PALLET OR WOODEN CASE
Delivery Time: 7-15DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 50SETS PER MONTH
Detailed Product Description
Belt Line Speed(m/min): 40/60/80 Main Generator Power(kw): 3
Cooling Generator Power (kw): 0.09 Working Clamp Style: Hydraulic
Saw Belt Tighten Style: Hand Loading Style: Extra Roller
Name: Portable Single Column Metal Cutting Bandsaw Sawing Machine Certification: CE
High Light:

cnc metal bandsaw machine

,

cnc hydraulic bandsaw machine

,

touch screen metal bandsaw machine

Portable Single Column Metal Cutting Bandsaw Sawing Machine



Features:

1. Hydraulic clamping vice
2. Swivel on both sides
3. Electric coolant system
4. High-capacity band control by two-speed motor
5. Vertical rotation on bolt with adjustable tapered bearings without backlash
6. Band stretching is obtained by electro-mechanical blade tension with micro switch


Automatic band saw machine Features:



1. Automatic CNC sawing machine, suitable for mass production continuous cutting

2. Cut-off length setted by screen, accuracy to 0.1mm, ensure the precision

3. Touch screen operation, man-machine interface in stead of buttons, easy to operate

4. High precision PLC control , 5 groups of sawing data available and improve sawing efficiency

5. Adoption of grating ruller feed system, single max feed stroke 420mm (length customization available)



Type BS-712N
Cut capcity W*H (mm) 90° round 178
      square 178*305
  45° round 127
        square 120*125
Bundle cutting W*H (mm) Max. 200*90
Min. 100*20
Saw belt size(mm) 3505*27*0.9
belt line speed(m/min) 15-80 frequency control
Main generator power(kw) 2.2
Hydraulic generator power(kw) 0.75
Cooling generator power (kw) 0.09
Working clamp style Hydraulic
Saw belt tighten style Hydraulic
Main trasmit structure Turbine
Loading style Extra roller
Volume of oil case (L) 60
Volume of water case (L) 40
Max single feeding (mm) 400
Working table height (mm) 650
Weights of machine (kgs) 145/178
Packing dimensions(mm) L*M*H 1540*590*1150





our service



pre-sale service

1. inquiry and consulting support. (pls tell your material size, longth etc...)
2. view our factory.

after-sale service
1. one year warranty is provided.
2. customers can send photos or samples for our confirmation once the parts are damaged within the one year warranty. if the parts are not damaged by misoperation, we will reply to customers within 48 hours and provide free parts for replacement. besides, for the parts out of commission and beyond the warranty, we only charge for the basic costs of parts.
3. we regularly follow up the service condition of products, and timely analyze and copy with the feedbacks. as for the disputes, we will figure out effective actions to reach mutual satisfaction.
