Refinery Pipe Induction Heating Elbow Machine Customized Color With Enough Running Space

I'm Online Chat Now

Refinery Pipe Induction Heating Elbow Machine Customized Color With Enough Running Space

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Refinery Pipe Induction Heating Elbow Machine Customized Color With Enough Running Space

Product Details:

Place of Origin: China
Brand Name: Hei Yan
Certification: ISO CE
Model Number: HYG

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Nogetiable
Packaging Details: Wooden case or plastic flim
Delivery Time: 30-90 working days
Payment Terms: T/T, L/C, D/P, D/A, MoneyGram, Western Union
Supply Ability: 3 Sets per month
Detailed Product Description
Bending Size: 114-2000mm Bending Material: Carbon Steel Stainless Steel Alloy Steel
Bending Thickness: 3-100mm Bending Radius: 2-10D
Input Voltage: 380V Color: Customized
High Light:

pipe bending press

,

pipeline bending machine

Refinery Pipe Bends Fully Automatic Hot Induction Making Machine





Suitable environment for Refinery Pipe Bends Fully Automatic Hot Induction Making Machine:
Temperature -5-45℃,reversely humidity≤80%, input voltage is three phase four line 380V( -10% — +15%),Frequency 50Hz±2%,working time 8-24 hours/day, No corrosive media, enough running space without wind and rain.



Max size Model Heating power Cylinder capacity Thickness
6” HYG-159 200KW IDΦ140 ODΦ168 5-20
8” HYG-219 200KW IDΦ140 ODΦ168 5-20
12” HYG-325 250KW IDΦ180 ODΦ219 5-20
16” HYG-426 350KW IDΦ180 ODΦ219 5-20
20” HYG-530 400KW IDΦ180 ODΦ219 5-20
24” HYG-630 500KW IDΦ200 ODΦ245 5-20
28” HYG-720 600KW IDΦ200 ODΦ245 5-20
32” HYG-813 800KW IDΦ220 ODΦ273 5-20
36” HYG-914 800KW IDΦ250 ODΦ299 5-20
48” HYG-1220 1000KW IDΦ280 ODΦ325 5-20
56” HYG-1420 1000KW IDΦ280 ODΦ325 5-20
60” HYG-1520 1000KW IDΦ280 ODΦ325 5-20
64” HYG-1620 1000KW IDΦ320 ODΦ377 5-20



Our Refinery Pipe Bends Fully Automatic Hot Induction Making Machine:
1. Main body is strength and durable.
2. Underframe welded with structural steel and steel plate, and machine milling. Pushing plate using T type groove structure, travel smoothly. Under the push board with grey iron plate, wear-resisting. Have wear compensation regulating variable.
3. Bending radius is adjusted by cycloidal motor drive screw rod adjustment, convenient adjustment, high precision.
4. Hydraulic system uses frequency control, working speed stepless variable speed, convenient adjustment, improve the production efficiency, saving energy save electricity. According to the feeding speed control motor speed, adjust the fuel delivery accordingly, on-demand oil supply, hydraulic oil without high pressure unloading, the oil temperature not too high.
5. Rocker arm uses the center boom structure, overcome the twist of rocker by bend moment, high bending precision, small rotating resistance, especially suitable for thin wall tube bending.
6. Medium frequency power supply adopts zero pressure startup mode, high success rate, high heating efficiency, low failure rate. Using control device, make power output stability: Input line voltage fluctuation ±15%, the system also can ensure constant power output.

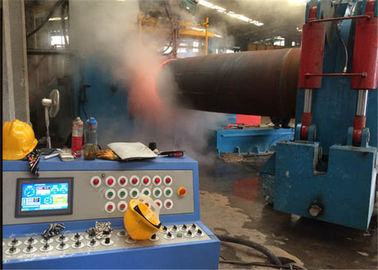

Refinery Pipe Induction Heating Elbow Machine Customized Color With Enough Running Space 0

Refinery Pipe Induction Heating Elbow Machine Customized Color With Enough Running Space 1

Refinery Pipe Induction Heating Elbow Machine Customized Color With Enough Running Space 2

Refinery Pipe Induction Heating Elbow Machine Customized Color With Enough Running Space 3
