High Performance Pipe Elbow Forming Machine 15 - 1420mm Production Range

I'm Online Chat Now

High Performance Pipe Elbow Forming Machine 15 - 1420mm Production Range

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  High Performance Pipe Elbow Forming Machine 15 - 1420mm Production Range

Product Details:

Place of Origin: China
Brand Name: Hei Yan
Certification: ISO CE
Model Number: HYW

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Wooden case with plastic film
Delivery Time: 30-60 Working days
Payment Terms: T/T, L/C, D/P, D/A, Western Union, MoneyGram
Supply Ability: 6Sets per month
Detailed Product Description
Product Name: Pipe Elbow Forming Making Machine With Heating Power Source Production Range: 15-1420mm
Process Thicness: 3-100mm Bending Radius: 1-3D
Bending Material: Carbon Alloy Steel Heating Method: Induction Heating
Input Voltage: 380V Heating Power: 100-1000KW
Color: Customized After-sales Service Provided: Engineers Available To Service Machinery Overseas
High Light:

elbow making machine

,

elbow bending machine

Pipe Elbow Forming Making Machine with heating power source




Pipe Elbow Forming Making Machine with heating power source are designed and constructed for manufacturing the small radius (1.0D-1.5D) carbon steel and alloy steel elbows, The production standard will be ASME B16.9, ASME B16.28, DIN2605, etc, These produced elbows will be widely used in the connection of the industrial pipelines for the Petrochemical.
Main Features of High efficient and convenient portable elbow hot forming machine:
1. High strength steel metal via gas shielded welding framed machine base is used on Hot mandrel elbow machine
3. Production of Hot mandrel elbow machines are seamless 45, 90 Deg LR&SR elbows size ranging from 3/4" to 36" with thickness up to 60mm, with production standard according to ASME B16.28, ASME B16.9 DIN2605 or Customized is preferable
4. Processing materials of Hot mandrel elbow machine are carbon steels



Elbow size outer diameter Φ25mm(1″)~Φ1420mm(56″)
Wall thickness 5~120mm
Bent diameter ≤3
Bent degree 22.5°,45°,90°,135° etc.
Hydraulic cylinder 2/4sets



Machine composition

1. machine base/frame
2. Main cylinder and supporting plate
3. pushing plate
4. front supporting plate
5. loading table
6. induction coils and adjusting device
7. medium frequency power supply
8. electrical control system
9. auxiliary equipment: hydraulic machine/ stamping moulds/pipe end cutting machine/quality testing machine



High Performance Pipe Elbow Forming Machine 15 - 1420mm Production Range 0

High Performance Pipe Elbow Forming Machine 15 - 1420mm Production Range 1

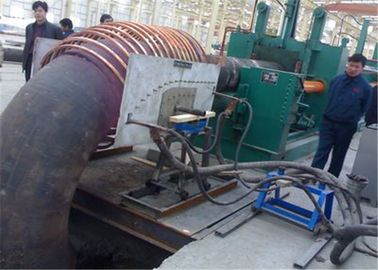

Pipe Elbow Forming Making Machine with heating power source designed and constructed for manufacturing the small radius (1D/1.5D) carbon steel elbows,alloy steel elbows. Medium Frequency Steel Elbow Machine has various designed ways, can be produce 2 piece of elbows in a time or support producing of elbow as well as 180 degree bend. And also sizes below 219mm, the machine can automatic working with our PLC control system. These elbows are widely used in the connection of the industrial pipelines for the Petrochemical , gas, oil pipes, electrical power and food, etc



High Performance Pipe Elbow Forming Machine 15 - 1420mm Production Range 2



Main features are as follows:

1. Induction hot forming machine is designed and manufactured in strong steel integral framework,

which makes the machines in good appearance, stable performance and high stability.

2. These machines have individual power system, electrical system and PLC centralized control system.

3. There’re two kinds of heating methods to choose: IGBT (Insulated Gate Bipolar Transistor) and KGPS.

4. High conversion efficiency more than 97.5% Saving more than 15% - 30% compared with SCR technology capacitor: high power factor-more than 0.95.

5. The application of hydraulic stepless speed control helps to realize fast material-feeding, easy operation and mass production.

6. The recycle water cooling system adopt Stainless steel DI water tank and connector to avoid scaling and clog in the water pipe.



High Performance Pipe Elbow Forming Machine 15 - 1420mm Production Range 3
