5D Hot Forming Elbow Making Machine Medium Frequency

large.img.alt
small.img.alt small.img.alt small.img.alt

Large Image :  5D Hot Forming Elbow Making Machine Medium Frequency

Product Details:

Place of Origin: China
Brand Name: heiyan
Certification: CE
Model Number: HYLW

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: wooden packing
Delivery Time: 15-25 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 7-15 set per month
Detailed Product Description
Machine Type: Hot Induction Elbow Machine After-sales Service Provided: Field Maintenance And Repair Service
Wall Thickness: 3~30mm Mould Clamping Force (KN): 1000-23000
Main Thrust (KN): 630-12000 Work Pressure (MPa): 25
Motor Power (KW): 11-110 Radius: 2D,3D,4D,5D,6D
Degree: 30°,45°,90°,180° Bending Material: Carbon Steel
High Light:

Hot Forming Elbow Making Machine

,

Medium Frequency Elbow Making Machine

,

5D Elbow Maker Machine

3D To 5D 180 Degree Carbon Steel Medium Frequency Hot Forming Elbow Making Machine



1.The intermediate frequency pipe bending machine uses intermediate frequency electric induction heating to bend the workpiece under the condition of local heating. Compared with the general cold pipe bender, not only does not need a complete set of special molds, but the machine tool volume also only accounts for 1/3 to 1/2 of the cold pipe bender of the same specification. Intermediate frequency hot bending process is the most economical and effective one of the existing pipe bending processes.
The process of intermediate frequency pipe bending is to put an induction ring on the part to be bent of the steel pipe, hold the pipe head with a mechanical swing arm, and heat the steel pipe with an intermediate frequency current in the induction ring. It is propelled by mechanical thrust and bent, and the bent steel pipe part is quickly cooled with a coolant, so that the bent pipe is continuously bent while heating, pushing, bending and cooling.

1) This process can avoid the unevenness of the wall thickness of the curved pipe caused by the thinning of the convex edge of the pipe wall and the thickening of the concave edge of the pipe wall during the traditional pipe bending process.
2) This process can be used to produce small-radius (R≈D) and thin-wall (t / D≈0.015) 180 elbows with uniform wall thickness, which cannot be achieved by other pipe bending processes.
3) If the design of various process parameters is reasonable, this process can ensure that the wall thickness of each part during the bending process is always the same, that is, it is always equal to the thickness of the straight tube wall before deformation.
4) This process can be used on the same horn mandrel to push the bends of 45 °, 90 °, 180 ° and other bends with the same caliber at one time, with high production efficiency.



2.Product Paramete



Model Size Range (mm) Clamping Force (KN) Pushing Force (KN) Ratedworking pressure (MPa) Total power of motor (KW) Total Weight (kg)
HYLW-100 Φ25-Φ76 1000 630 25 11 6300
HYLW-200 Φ34-Φ114 2000 1250 25 18.5 9000
HYLW-400A Φ133-Φ273 4000 2500 25 29.5 38000
HYLW-400B Φ108-Φ219 4000 2500 25 29.5 35000
HYLW-630 Φ133-Φ325 6300 3150 25 36 48000
HYLW-800 Φ219-Φ377 8000 4500 25 42 76000
HYLW-1000 Φ273-Φ426 10000 5000 25 65 98000
HYLW-1600 Φ325-Φ530 16000 8000 25 88.5 130000
HYLW-2000 Φ406-Φ630 23000 12000 25 110 200000

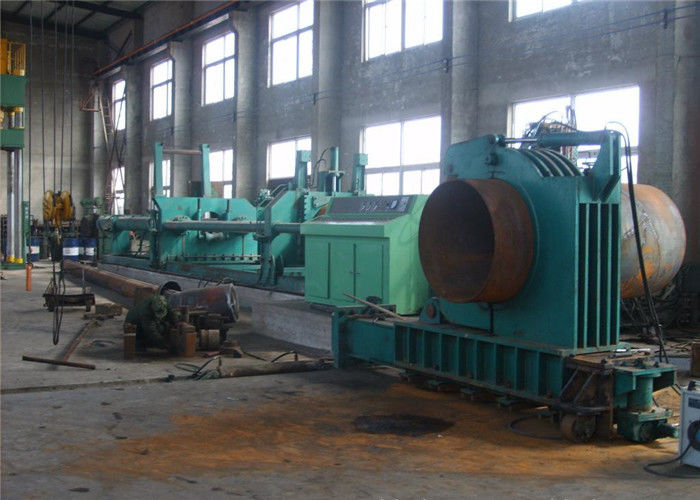

5D Hot Forming Elbow Making Machine Medium Frequency 05D Hot Forming Elbow Making Machine Medium Frequency 1
